M2300/SB Series Snap Rings for Bore

M2300/SB Series Snap Rings for Bore, material by spring steel, black oxide , size d7mm – d200mm from China Snap Rings manufacturer.

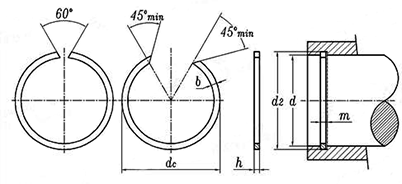

M2300/SB Series Snap Rings for Bore M2300/SB Series Snap Rings for Bore drawing

Standard: M2300 / SB series
Material: Spring Steel
Hardness: HRC41-HRC56
Finish: Black oxide, Zinc plated
Size:M4 – M16

M2300/SB Series Snap Rings for Bore specification:

Size Thickness
h max		 Thickness
h min		 Width
b max		 Width
b min		 O.D.
dc min		 d2 min d2 max m Weight
Kg/1000Pcs
7 0.8 0.7 1 0.9 7.5 7.3 7.39 0.9 0.09
8 0.8 0.7 1 0.9 8.5 8.3 8.39 0.9 0.1
9 0.8 0.7 1.1 1 9.5 9.3 9.39 0.9 0.13
10 0.8 0.7 1.2 1.1 10.6 10.4 10.49 0.9 0.15
11 1 0.9 1.3 1.2 11.6 11.4 11.51 1.1 0.21
12 1 0.9 1.3 1.2 12.7 12.4 12.51 1.1 0.25
13 1 0.9 1.3 1.2 13.8 13.5 13.61 1.1 0.28
14 1 0.9 1.3 1.2 14.8 14.5 14.61 1.1 0.31
15 1 0.9 1.3 1.2 15.8 15.5 15.61 1.1 0.34
16 1.2 1.1 1.6 1.5 16.8 16.5 16.61 1.3 0.53
17 1.2 1.1 1.7 1.6 17.8 17.5 17.61 1.3 0.55
18 1.2 1.1 1.75 1.65 18.9 18.5 18.63 1.3 0.68
19 1.2 1.1 1.75 1.65 19.9 19.6 19.73 1.3 0.72
20 1.2 1.1 1.75 1.65 21 20.6 20.73 1.3 0.76
21 1.2 1.1 1.75 1.65 22 21.6 21.73 1.3 0.79
22 1.2 1.1 1.75 1.65 23 22.6 22.73 1.3 0.81
23 1.2 1.1 1.75 1.65 24 23.6 23.73 1.3 0.88
24 1.2 1.1 1.75 1.65 25.2 24.8 24.93 1.3 0.9
25 1.2 1.1 1.75 1.65 26.2 25.8 25.93 1.3 0.91
26 1.2 1.1 1.75 1.65 27.2 26.8 26.93 1.3 0.98
27 1.2 1.1 1.75 1.65 28.2 27.8 27.93 1.3 1.11
28 1.2 1.1 1.75 1.65 29.2 28.8 28.93 1.3 1.13
29 1.2 1.1 1.75 1.65 30.2 29.8 29.93 1.3 1.15
30 1.5 1.4 2.3 2.2 31.4 31 31.16 1.6 2
31 1.5 1.4 2.3 2.2 32.4 32 32.16 1.6 2.03
32 1.5 1.4 2.3 2.2 33.4 33 33.16 1.6 2.11
33 1.5 1.4 2.3 2.2 34.4 34 34.16 1.6 2.26
34 1.5 1.4 2.3 2.2 35.4 35 35.16 1.6 2.34
35 1.5 1.4 2.3 2.2 36.4 36 36.16 1.6 2.36
37 1.5 1.4 2.3 2.2 38.8 38.2 38.36 1.6 2.53
38 1.5 1.4 2.3 2.2 39.8 39.2 39.36 1.6 2.61
39 1.5 1.4 2.3 2.2 40.8 40.2 40.36 1.6 2.67
40 1.5 1.4 2.3 2.2 41.8 41.2 41.36 1.6 2.8
42 1.5 1.4 2.3 2.2 43.8 43.2 43.36 1.6 2.92
43 1.5 1.4 2.3 2.2 44.8 44.2 44.36 1.6 3.03
44 1.5 1.4 2.3 2.2 45.8 45.2 45.36 1.6 3.11
45 1.5 1.4 2.3 2.2 46.8 46.2 46.36 1.6 3.25
46 1.5 1.4 2.3 2.2 47.8 47.2 47.36 1.6 3.28
47 1.5 1.4 2.3 2.2 48.8 48.2 48.36 1.6 3.29
48 1.5 1.4 2.3 2.2 49.8 49.2 49.36 1.6 3.45
50 1.5 1.4 2.3 2.2 51.8 51.2 51.39 1.6 3.57
52 1.5 1.4 2.3 2.2 54.3 53.5 53.69 1.6 3.58
53 1.5 1.4 2.3 2.2 55.3 54.5 54.69 1.6 3.82
55 1.5 1.4 2.3 2.2 57.3 56.5 56.69 1.6 3.93
57 1.5 1.4 2.3 2.2 59.3 58.5 58.69 1.6 4.12
58 1.5 1.4 2.3 2.2 60.3 59.5 59.69 1.6 4.13
60 1.5 1.4 2.3 2.2 62.3 61.5 61.69 1.6 4.28
62 1.5 1.4 2.3 2.2 64.3 63.5 63.69 1.6 4.42
63 1.5 1.4 2.3 2.2 65.3 64.5 64.69 1.6 4.5
65 1.5 1.4 2.3 2.2 67.3 66.5 66.69 1.6 4.72
68 1.5 1.4 2.3 2.2 70.3 69.5 69.69 1.6 4.9
70 1.5 1.4 2.3 2.2 72.3 71.5 71.69 1.6 4.93
72 2 1.9 2.8 2.7 74.6 73.8 73.99 2.2 8.49
73 2 1.9 2.8 2.7 75.6 74.8 74.99 2.2 8.52
74 2 1.9 2.8 2.7 76.6 75.8 75.99 2.2 8.6
76 2 1.9 2.8 2.7 78.6 77.8 77.99 2.2 8.89
78 2 1.9 2.8 2.7 80.6 79.8 79.99 2.2 9.05
79 2 1.9 2.8 2.7 81.6 80.8 81.02 2.2 9.07
80 2 1.9 2.8 2.7 82.6 81.8 82.02 2.2 9.22
81 2 1.9 2.8 2.7 83.6 82.8 83.02 2.2 9.31
82 2 1.9 2.8 2.7 84.6 83.8 84.02 2.2 9.45
83 2 1.9 2.8 2.7 85.6 84.8 85.02 2.2 9.63
85 2 1.9 2.8 2.7 87.6 86.8 87.02 2.2 9.81
86 2 1.9 2.8 2.7 88.6 87.8 88.02 2.2 9.91
88 2.5 2.4 3.4 3.3 91 90 90.22 2.7 15.4
90 2.5 2.4 3.4 3.3 93 92 92.22 2.7 15.6
92 2.5 2.4 3.4 3.3 95 94 94.22 2.7 16.6
93 2.5 2.4 3.4 3.3 96 95 95.22 2.7 16.8
95 2.5 2.4 3.4 3.3 98 97 97.22 2.7 16.9
97 2.5 2.4 3.4 3.3 100 99 99.22 2.7 17.1
98 2.5 2.4 3.4 3.3 101 100 100.22 2.7 17.5
100 2.5 2.4 3.4 3.3 103 102 102.22 2.7 17.9
102 2.5 2.4 3.4 3.3 105.3 104.3 104.52 2.7 18.4
103 2.5 2.4 3.4 3.3 106.3 105.3 105.52 2.7 18.5
105 2.5 2.4 3.4 3.3 108.3 107.3 107.52 2.7 18.7
107 2.5 2.4 3.4 3.3 110.3 109.3 109.52 2.7 19.1
108 2.5 2.4 3.4 3.3 111.3 110.3 110.52 2.7 19.3
110 2.5 2.4 3.4 3.3 113.4 112.3 112.52 2.7 19.8
112 2.5 2.4 3.4 3.3 115.4 114.3 114.52 2.7 20.3
113 2.5 2.4 3.4 3.3 116.4 115.3 115.52 2.7 20.5
115 2.5 2.4 3.4 3.3 118.4 117.3 117.52 2.7 20.6
117 2.5 2.4 3.4 3.3 120.4 119.3 119.52 2.7 20.8
118 2.5 2.4 3.4 3.3 121.4 120.3 120.55 2.7 21.1
120 2.5 2.4 3.4 3.3 123.5 122.3 122.55 2.7 21.4
123 2.5 2.4 3.4 3.3 126.5 125.3 125.55 2.7 22
125 2.5 2.4 3.4 3.3 128.5 127.3 127.55 2.7 22.5
127 2.5 2.4 3.4 3.3 130.5 129.3 129.55 2.7 23
130 2.5 2.4 3.4 3.3 133.6 132.3 132.55 2.7 23.4
133 2.5 2.4 3.4 3.3 136.6 135.3 135.55 2.7 24.4
135 2.5 2.4 3.4 3.3 138.6 137.3 137.55 2.7 25
137 2.5 2.4 3.4 3.3 140.6 139.3 139.55 2.7 25.3
140 2.5 2.4 4 3.9 144 142.6 142.85 2.7 29.3
143 2.5 2.4 4 3.9 147 145.6 145.85 2.7 30.1
150 2.5 2.4 4 3.9 154.1 152.6 152.85 2.7 31.9
153 2.5 2.4 4 3.9 157.1 155.6 155.85 2.7 32.6
160 2.5 2.4 4 3.9 164.2 162.6 162.85 2.7 34.4
163 2.5 2.4 4 3.9 167.2 165.6 165.85 2.7 34.6
165 2.5 2.4 4 3.9 169.2 167.6 167.85 2.7 34.9
170 2.5 2.4 4 3.9 174.3 172.6 172.85 2.7 36.2
173 2.5 2.4 4 3.9 177.3 175.6 175.85 2.7 37.1
175 2.5 2.4 4 3.9 179.3 177.6 177.85 2.7 37.3
180 2.5 2.4 4 3.9 184.5 182.6 182.89 2.7 38.3
183 2.5 2.4 4 3.9 187.5 185.6 185.89 2.7 41
190 3 2.9 5 4.9 194.9 193 193.29 3.2 61.3
195 3 2.9 5 4.9 199.9 198 198.29 3.2 61.6
200 3 2.9 5 4.9 205 203 203.29 3.2 64.5
