M1308 JV/DHI Inverted Internal Retaining Rings

M1308 JV/DHI Inverted Internal Retaining Rings , made of Spring steel 65Mn, size JV-10mm – JV-200mm from China Retaining Rings Manufacturer.

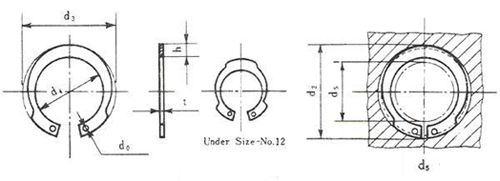

M1308 JV/DHI Inverted Internal Retaining Rings M1308 JV/DHI Inverted Internal Retaining Rings drawing

M1308 JV/DHI Inverted Internal Retaining Rings
Standard: M1308 , JV
Material: Spring Steel 65Mn
Size: JV-10mm – JV-100mm

Size s max s min d3 min b max b min d0 min m min
10 0.6 0.55 10.77 1.6 1.4 0.9 0.7
12 0.6 0.55 12.97 1.9 1.7 1.0 0.7
15 0.8 0.75 15.97 2.1 1.9 1.0 0.9
16 1.0 0.94 17.17 2.2 2.0 1.3 1.1
17 1.0 0.94 18.17 2.2 2.0 1.3 1.1
18 1.0 0.94 19.37 2.3 2.1 1.3 1.1
19 1.0 0.94 20.37 2.3 2.1 1.3 1.1
20 1.0 0.94 21.37 2.4 2.2 1.3 1.1
21 1.0 0.94 22.37 2.5 2.3 1.3 1.1
22 1.0 0.94 23.37 2.5 2.3 1.3 1.1
24 1.2 1.14 25.69 2.9 2.7 1.5 1.3
25 1.2 1.14 26.69 2.9 2.7 1.5 1.3
26 1.2 1.14 27.69 3.1 2.9 1.5 1.3
27 1.2 1.14 28.89 3.1 2.9 1.5 1.3
28 1.2 1.14 29.85 3.2 3 1.5 1.3
30 1.2 1.14 31.85 3.3 3.1 1.5 1.3
32 1.2 1.14 34.15 3.4 3.2 1.5 1.3
33 1.2 1.14 35.25 3.4 3.2 1.5 1.3
35 1.5 1.44 37.55 3.5 3.3 1.7 1.6
36 1.5 1.44 38.55 3.7 3.5 1.7 1.6
38 1.5 1.44 40.55 3.9 3.7 1.7 1.6
40 1.75 1.69 43.11 4.4 4.0 2.0 1.85
42 1.75 1.69 45.11 4.4 4.0 2.0 1.85
45 1.75 1.69 48.11 4.4 4.0 2.0 1.85
47 1.75 1.69 50.04 4.9 4.5 2.0 1.85
48 1.75 1.69 51.04 4.9 4.5 2.0 1.85
50 2.0 1.93 53.74 5.4 5.0 2.5 2.15
52 2.0 1.93 55.74 5.4 5.0 2.5 2.15
55 2.0 1.93 58.74 5.4 5.0 2.5 2.15
57 2.0 1.93 60.74 5.4 5.0 2.5 2.15
58 2.0 1.93 61.74 5.4 5.0 2.5 2.15
60 2.0 1.93 63.74 5.4 5.0 2.5 2.15
62 2.0 1.93 65.74 5.4 5.0 2.5 2.15
65 2.5 2.43 68.74 5.9 5.5 2.5 2.65
67 2.5 2.43 71.04 6.0 5.4 2.5 2.65
68 2.5 2.43 72.04 6.0 5.4 2.5 2.65
72 2.5 2.43 76.04 6.3 5.7 2.5 2.65
80 2.5 2.43 84.96 6.3 5.7 2.5 2.65
85 3.0 2.92 89.96 6.9 6.3 3.0 3.15
90 3.0 2.92 94.96 6.9 6.3 3.0 3.15
95 3.0 2.92 99.96 7.7 7.1 3.0 3.15
100 3.0 2.92 104.96 7.7 7.1 3.0 3.15
