M1408/AV Inverted Retaining Ring for Shaft

M1408/AV Inverted Retaining Ring for Shaft , made of Spring steel 65Mn, size AV-12mm – AV-200mm from China Retaining Rings Manufacturer.

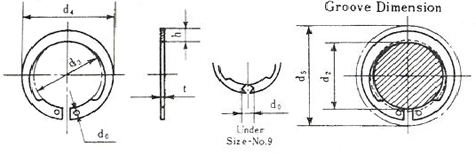

M1408/AV Inverted Retaining Ring for Shaft M1408/AV Inverted Retaining Ring for Shaft drawing

M1408/AV Inverted Retaining Ring for Shaft
Standard: M1408 , AV
Material: Spring Steel 65Mn
Size: AV-12mm – AV-100mm

Diameter
(d1)		 Unstressed Diameter
(d3)		 Thickness
(s)		 Beam (b) Lug Hole
(d5) min		 Groove Diameter
(d2)
12 11 1 2.1 1.3 11.5
13 11.9 1 2.1 1.3 12.4
14 12.9 1 2.1 1.3 13.4
15 13.8 1 2.2 1.3 14.3
16 14.7 1 2.3 1.3 15.2
17 15.7 1 2.4 1.3 16.2
18 16.5 1.2 2.6 1.5 17
20 18.5 1.2 2.8 1.5 19
21 19.35 1.2 2.8 1.5 20
22 20.5 1.2 3 1.5 21
23 21.5 1.2 3.1 1.5 22
24 22.2 1.2 3.2 1.5 22.9
25 23.2 1.2 3.4 1.5 23.9
26 24.2 1.2 3.5 1.5 24.9
28 25.9 1.5 3.8 2 26.6
30 27.9 1.5 3.9 2 28.6
32 29.6 1.5 4 2 30.3
34 31.5 1.5 3.5 2 32.3
35 32.2 1.5 4.2 2 33
38 34.5 1.75 4.5 2 35.8
40 36.5 1.75 4.7 2 37.5
42 38.5 1.75 4.7 2 39.5
45 41.5 1.75 4.7 2 42.5
47 43.5 1.75 5 2 44.5
48 44.5 1.75 5.2 2 45.5
50 45.8 2 5.2 2.5 47
55 50.8 2 5.8 2.5 52
58 53.8 2 5.8 2.5 55
60 55.8 2 5.8 2.5 57
65 60.8 2.5 6 2.5 62
70 65.5 2.5 6.5 2.5 67
72 67.5 2.5 6.5 2.5 69
75 70.5 2.5 6.5 2.5 72
80 74.5 2.5 7 2.5 76.5
82 76.5 2.5 7 2.5 78.5
85 79.5 3 7.4 3 81.5
87 81.5 3 7.4 3 83.5
90 84.5 3 7.4 3 86.5
95 89.5 3 8 3 91.5
100 94.5 3 8 3 96.5
