T-handle Quick Release Pins
T-handle Quick Release Pins, size dia. 5mm-25mm , Grip range 10mm-100mm, material by steel from quick release pins manufacturer in China.
 |
 |
Material: Steel / Stainless steel
Finish: Galvanized

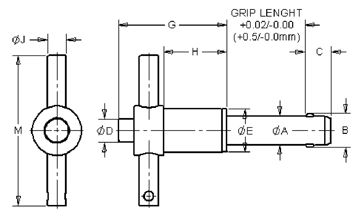

T-handle Quick Release Pins Metric Size :
| Size | Dia. Min | Dia. Max | B +/-0.25 | C +0/-1.0 | D | E | F | G | H |
| 5 | 4.92 | 4.96 | 5.54 | 6 | 6.5 | 13.1 | 44.9 | 31.3 | 19.7 |
| 6 | 5.92 | 5.96 | 6.99 | 7 | 6.5 | 13.1 | 44.9 | 31.3 | 19.7 |
| 8 | 7.92 | 7.96 | 9.42 | 8 | 6.5 | 13.1 | 44.9 | 31.3 | 19.7 |
| 10 | 9.92 | 9.96 | 11.86 | 9 | 7.7 | 15.1 | 50.8 | 36.1 | 24.0 |
| 12 | 11.92 | 11.96 | 14.45 | 10 | 11.1 | 19.1 | 57.2 | 41.9 | 25.8 |
| 16 | 15.92 | 15.96 | 19.00 | 14 | 14.5 | 23.9 | 63.0 | 49.8 | 30.1 |
| 20 | 19.92 | 19.96 | 24.08 | 17 | 26.2 | 23.9 | 63.0 | 49.8 | 30.1 |
| 25 | 24.92 | 24.96 | 30.94 | 22 | 26.2 | 32.4 | 82.0 | 55.9 | 33.9 |
