DIN 1804 Slotted Round Nuts for Hook Spanner

DIN 1804 Slotted Round Nuts for Hook Spanner, material by spring steel, black oxide / zinc plated , size M6-M200 from China Bearings Lock Nuts manufacturer.

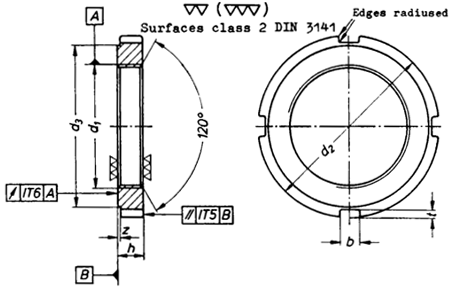

DIN 1804 Slotted Round Nuts for Hook Spanner DIN 1804 Slotted Round Nuts for Hook Spanner drawing

Standard: DIN 1804 Slotted Round Nuts for Hook Spanner, Bearing Locknuts
Material: Steeel
Finish: Black oxide, Zinc plated
Size:M6-M200

DIN 1804 Slotted Round Nuts for Hook Spanner specification:

　Size P d2 max d2 min d3 b h max h min t z Number
of Slots		 Weight
kg/100Pcs
M6 0.75 16 15.89 12 4 5 4.7 1.5 0.5 4 0.575
M8 1 20 19.87 16 4 5 4.7 1.5 0.5 4 0.925
M10 1 25 24.87 20 5 6 5.7 2 0.5 4 1.74
M12 1.5 28 27.87 23 5 6 5.7 2 0.5 4 2.17
M14 1.5 30 29.87 25 5 7 6.64 2 0.5 4 2.86
M16 1.5 32 31.84 27 5 7 6.64 2 0.5 4 3.14
M18 1.5 34 33.84 28 6 8 7.64 2.5 0.5 4 3.8
M20 1.5 36 35.84 30 6 8 7.64 2.5 0.5 4 4.13
M22 1.5 40 39.84 34 6 9 8.64 2.5 0.5 4 5.9
M24 1.5 42 41.84 36 6 9 8.64 2.5 0.5 4 6.3
M26 1.5 45 44.84 38 7 10 9.64 3 0.5 4 7.82
M28 1.5 50 49.84 43 7 10 9.64 3 0.5 4 10.1
M30 1.5 50 49.84 43 7 10 9.64 3 0.5 4 9.35
M32 1.5 52 51.81 45 7 11 10.57 3 0.5 4 10.8
M35 1.5 55 54.81 48 7 11 10.57 3 0.5 4 11.7
M38 1.5 58 57.81 50 8 11 10.57 3.5 0.5 4 12.3
M40 1.5 62 61.81 54 8 12 11.57 3.5 0.5 4 15.9
M42 1.5 62 61.81 54 8 12 11.57 3.5 0.5 4 14.7
M45 1.5 68 67.81 60 8 12 11.57 3.5 0.5 6 18.1
M48 1.5 75 74.81 67 8 13 12.57 3.5 0.5 6 25.3
M50 1.5 75 74.81 67 8 13 12.57 3.5 0.5 6 23.8
M52 1.5 80 79.81 70 10 13 12.57 4 0.5 6 27.5
M55 1.5 80 79.81 70 10 13 12.57 4 0.5 6 25.1
M58 1.5 90 89.78 80 10 13 12.57 4 0.5 6 36
M60 1.5 90 89.78 80 10 13 12.57 4 0.5 6 34.1
M62 1.5 95 94.78 85 10 14 13.57 4 0.5 6 42.6
M65 1.5 95 94.78 85 10 14 13.57 4 0.5 6 39.4
M68 1.5 100 99.78 90 10 14 13.57 4 0.5 6 44.4
M70 1.5 100 99.78 90 10 14 13.57 4 0.5 6 41.8
M72 1.5 110 109.78 100 10 14 13.57 4 0.5 6 57.7
M75 1.5 110 109.78 100 10 14 13.57 4 0.5 6 54
M80 2 115 114.78 105 10 16 15.57 4 1 6 57.6
M85 2 120 119.78 110 10 16 15.57 4 1 6 68
M90 2 130 129.75 120 10 16 15.57 4 1 6 84.3
M95 2 135 134.75 120 12 16 15.57 5 1 6 86
M100 2 145 144.75 130 12 16 15.57 5 1 6 104
M105 2 155 154.75 140 12 16 15.57 5 1 6 123
M110 2 155 154.75 140 12 16 15.57 5 1 6 113
M115 2 165 164.75 150 12 18 17.57 5 1 6 150
M120 2 165 164.75 150 12 18 17.57 5 1 6 137
M125 2 180 179.75 165 12 18 17.57 5 1 8 178
M130 3 180 179.75 165 12 18 17.57 5 1 8 167
M140 3 195 194.71 180 12 18 17.57 5 1 8 200
M150 3 205 204.71 190 12 18 17.57 5 1 8 212
M160 3 220 219.71 205 12 20 19.48 5 1 8 278
M170 3 230 229.71 210 16 20 19.48 7 1 8 286
M180 3 245 244.71 225 16 20 19.48 7 1 8 330
M190 3 260 259.68 240 16 20 19.48 7 1 8 377
M200 3 270 269.68 250 16 22 21.48 7 1 8 436
