GUK Lock Nuts
GUK Lock Nuts , GUK type nylon insert locking nuts, GUK0-GUK20 ( M10-M100 ) made of steel from China Lock Nuts Manufacturer.
 |
 |
GUK Lock Nuts , GUK Type Nylon Insert Locking Nuts
Material: Steel
Finish: Zinc plated
Size: GUK0 – GUK20 ( M10-M100)

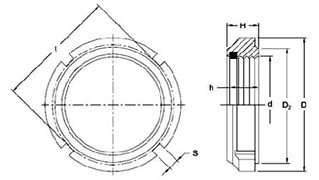

| Part No | Size | H/mm | h/mm | D/mm | D2/mm | t/mm | S/mm | No.of grooves |
| GUK10 | M10*0.75 | 7.4 | 4.5 | 18 | 15 | 15 | 3 | 4 |
| GUK12 | M12*1.0 | 7.4 | 4.5 | 21 | 18 | 18 | 3 | 4 |
| GUK15 | M15*1.0 | 8.4 | 5.5 | 24 | 21 | 21 | 4 | 4 |
| GUK17 | M17*1.0 | 8.4 | 5.5 | 28 | 24 | 24 | 4 | 4 |
| GUK20 | M20*1.0 | 9.4 | 6.5 | 32 | 27 | 27 | 4 | 4 |
| GUK25 | M25*1.5 | 10.3 | 6.5 | 38 | 33 | 33 | 5 | 4 |
| GUK30 | M30*1.5 | 10.9 | 6.5 | 44 | 38 | 38 | 5 | 4 |
| GUK35 | M35*1.5 | 11.1 | 7 | 50 | 44 | 44 | 5 | 4 |
| GUK40 | M40*1.5 | 12.1 | 8.2 | 56 | 50 | 50 | 6 | 4 |
| GUK45 | M45*1.5 | 12.1 | 8.2 | 62 | 55 | 55 | 6 | 4 |
| GUK50 | M50*1.5 | 12.7 | 8.5 | 68 | 61 | 61 | 6 | 4 |
| GUK55 | M55*2.0 | 13.2 | 8.5 | 75 | 68 | 68 | 7 | 6 |
| GUK60 | M60*2.0 | 13.2 | 8.5 | 80 | 73 | 73 | 7 | 6 |
| GUK65 | M65*2.0 | 14.3 | 9.5 | 85 | 77 | 77 | 7 | 6 |
| GUK70 | M70*2.0 | 14.3 | 9.5 | 92 | 84 | 84 | 8 | 6 |
| GUK75 | M75*2.0 | 15.3 | 10.5 | 98 | 89 | 89 | 8 | 6 |
| GUK80 | M80*2.0 | 16.3 | 11.5 | 105 | 96 | 96 | 8 | 8 |
| GUK85 | M85*2.0 | 17.3 | 12.5 | 110 | 100 | 100 | 8 | 8 |
| GUK90 | M90*2.0 | 17.5 | 12.5 | 120 | 110 | 110 | 10 | 8 |
| GUK95 | M95*2.0 | 18.5 | 13.5 | 125 | 115 | 115 | 10 | 8 |
| GUK100 | M100*2.0 | 19.5 | 14.5 | 130 | 120 | 120 | 10 | 8 |
