Self-clinching Studs
Self-clinching Studs, FH, FHA and FHS type made of steel or stainless steel, M2.5 – M8 from China self-clinching stud manufacturer.
 |
 |
Material: Steel / Stainless steel
Finish: Galvanized

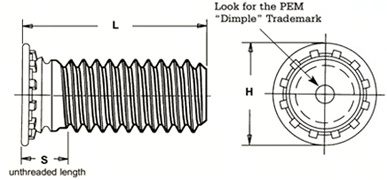

Self-clinching Studs Size :
| Size | Size | Sheet min. | Hole +0.08 | Hole max. | ±0.4 | S max |
| M2.5×0.45 | M2.5 | 1 | 2.5 | 3.1 | 4.1 | 1.95 |
| M3×0.5 | M3 | 1 | 3 | 3.6 | 4.6 | 2.1 |
| M3.5×0.6 | M3.5 | 1 | 3.5 | 4.1 | 5.3 | 2.25 |
| M4×0.7 | M4 | 1 | 4 | 4.6 | 5.9 | 2.4 |
| M5×0.8 | M5 | 1 | 5 | 5.6 | 6.5 | 2.7 |
| M6×1 | M6 | 1.6 | 6 | 6.6 | 8.2 | 3 |
| M8×1.25 | M8 | 2.4 | 8 | 8.6 | 9.6 | 3.7 |
