ISO 13918 Weld Stud with Internal Thread
ISO 13918 Weld Stud with Internal Thread for arc stud welding, Type IT, material by steel, size M3-M8 from China Weld Stud manufacturer.
 |
 |
ISO 13918 Weld Stud with Internal Thread
Standard: ISO 13918 Type IT
Material: Steel
Finish: Copper Plated
Size:M3 – M8

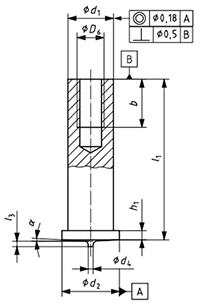

ISO 13918 Type IT Weld Stud with Internal Thread specification:
| Size | M3 | M4 | M5 | |
| P | Pitch | 0.5 | 0.7 | 0.8 |
| ds | max | 5.1 | 6.1 | 7.2 |
| min | 4.9 | 5.9 | 7 | |
| b | min | 5 | 6 | 7.5 |
| max | 5.5 | 6.5 | 8 | |
| e | min | 2.5 | 3 | 3 |
| dk | Nominal Size | 6.5 | 7.5 | 9 |
| max | 6.7 | 7.7 | 9.2 | |
| min | 6.3 | 7.3 | 8.8 | |
| dp | Nominal Size | 0.75 | 0.75 | 0.75 |
| max | 0.83 | 0.83 | 0.83 | |
| min | 0.67 | 0.67 | 0.67 | |
| z | Nominal Size | 0.8 | 0.8 | 0.85 |
| max | 0.85 | 0.85 | 0.9 | |
| min | 0.75 | 0.75 | 0.8 | |
| h | min | 0.8 | 0.8 | 0.8 |
| max | 1.4 | 1.4 | 1.4 | |
