Hammer Nuts for Aluminum Extrusion
Hammer Nuts for Aluminum Extrusion, M3-M8 made of steel for aluminum extrusion series 20/30/40/45 from China Hammer Nuts Manufacturer.
 |
 |
Hammer Nuts for Aluminum Extrusion series 20/30/40/45 .
Material: Steel
Finish: Zinc plated
Size: M3-M8

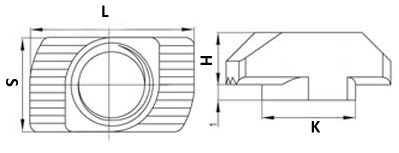

| Item | Size | H | L | S | Aluminum Extrusion |
| Hammer Nuts | M3 | 10.3 | 5 | 6 | Series 20 |
| Hammer Nuts | M4 | 10.3 | 5 | 6 | Series 20 |
| Hammer Nuts | M5 | 10.3 | 5 | 6 | Series 20 |
| Hammer Nuts | M3 | 15.5 | 6.5 | 8 | Series 30 |
| Hammer Nuts | M4 | 15.5 | 6.5 | 8 | Series 30 |
| Hammer Nuts | M5 | 15.5 | 6.5 | 8 | Series 30 |
| Hammer Nuts | M6 | 15.5 | 6.5 | 8 | Series 30 |
| Hammer Nuts | M4 | 19.5 | 7.5-8 | 8 | Series 40 |
| Hammer Nuts | M5 | 19.5 | 7.5-8 | 8 | Series 40 |
| Hammer Nuts | M6 | 19.5 | 7.5-8 | 8 | Series 40 |
| Hammer Nuts | M4 | 19 | 8.5 | 10 | Series 45 |
| Hammer Nuts | M5 | 19 | 8.5 | 10 | Series 45 |
| Hammer Nuts | M6 | 19 | 8.5 | 10 | Series 45 |
| Hammer Nuts | M8 | 19 | 8.5 | 10 | Series 45 |
