DIN 913 Flat Point Socket Set Screws

DIN 913 Flat Point Socket Set Screws , made of steel / stainless steel, size M3-M16 , length 3mm-160mm  from China Socket Set Screws manufacturer.

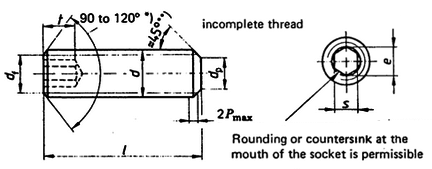

DIN 913 Flat Point Socket Set Screws DIN 913 technical drawing

Flat Point Socket Set Screws
Standard: DIN 913
Material: Steel – Class 8.8, 10.9 and 12.9 ; Stainless steel – A2-70, A4-80
Finish: Zinc Plated
Size:M3-M16

Item Standard Size Length
Flat Point Socket Set Screws DIN 913 M3 3-20mm
Flat Point Socket Set Screws DIN 913 M4 4-20mm
Flat Point Socket Set Screws DIN 913 M5 5-25mm
Flat Point Socket Set Screws DIN 913 M6 6-40mm
Flat Point Socket Set Screws DIN 913 M8 8-60mm
Flat Point Socket Set Screws DIN 913 M10 10-100mm
Flat Point Socket Set Screws DIN 913 M12 16-120mm
Flat Point Socket Set Screws DIN 913 M16 20-160mm
