DIN 1587 Hex Cap Nuts
DIN 1587 Hex Cap Nuts , also known as Cap Nuts, Dome Nuts, Acorn Nuts, size M4-M20 made of steel, stainless steel or brass from China Hex Cap Nuts Manufacturer.
 |
 |
Hex Cap Nuts
Standard: DIN 1587
Material: Steel , Stainless Steel , Brass
Finish: Zinc plated, Nickel Plated
Size: M4-M20

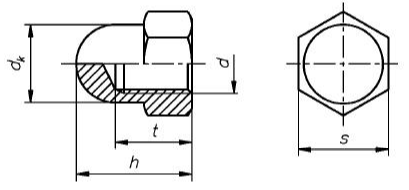

| Item | d1 | s | e | d max. | m max. | h |
| Hex Cap Nuts | M3 | 5.5 | 6.01 | 5.5 | 2.4 | 7 |
| Hex Cap Nuts | M4 | 7 | 7.66 | 6.5 | 3.2 | 8 |
| Hex Cap Nuts | M5 | 8 | 8.79 | 7.5 | 4 | 10 |
| Hex Cap Nuts | M6 | 10 | 11.05 | 9.5 | 5 | 12 |
| Hex Cap Nuts | M8 | 13 | 14.38 | 12.5 | 6.5 | 15 |
| Hex Cap Nuts | M10 | 17 | 18.9 | 16 | 8 | 18 |
| Hex Cap Nuts | M12 | 19 | 21.1 | 18 | 10 | 22 |
| Hex Cap Nuts | M16 | 24 | 26.75 | 23 | 13 | 28 |
| Hex Cap Nuts | M20 | 30 | 33.53 | 28 | 16 | 34 |
