DIN 603 / ISO 8678 Carriage Bolts
DIN 603 / ISO 8678 Carriage Bolts , Mushroom head square neck bolts, class 4.8/8.8 , zinc plated, size M5-M16 from China Carriage Bolts Manufacturer.
 |
 |
DIN 603 / ISO 8678 Carriage Bolts, Mushroom Head Square Neck bolts
Standard: DIN 603
Material: Steel, Class 4.8 / class 8.8
Surface treatment: zinc plated, Darcomet or H.D.G
Size: M5 – M16

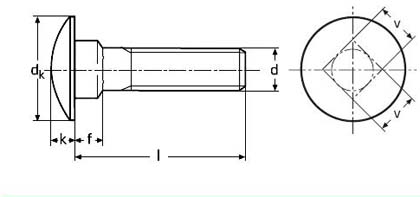

| Size | M5 | M6 | M8 | M10 | M12 | M16 |
| d2 max | 13.55 | 16.55 | 20.65 | 24.65 | 30.65 | 38.8 |
| d2 min | 12.45 | 15.45 | 19.35 | 23.35 | 29.35 | 37.2 |
| k max | 3.30 | 3.88 | 4.88 | 5.38 | 6.95 | 8.95 |
| k min | 2.70 | 3.12 | 4.12 | 4.62 | 6.05 | 8.05 |
| f max | 4.10 | 4.60 | 5.60 | 6.60 | 8.75 | 12.9 |
| f min | 2.90 | 3.40 | 4.40 | 5.40 | 7.25 | 11.1 |
| v max | 5.48 | 6.48 | 8.58 | 10.58 | 12.7 | 16.7 |
| v min | 4.52 | 5.72 | 7.42 | 9.42 | 11.3 | 15.3 |
| b L<125 | 16.0 | 18.0 | 22 | 26 | 30 | 38 |
| b L=125-200 | - | - | 28 | 32 | 36 | 44 |
| b L>200 | - | - | - | - | 49 | 57 |
